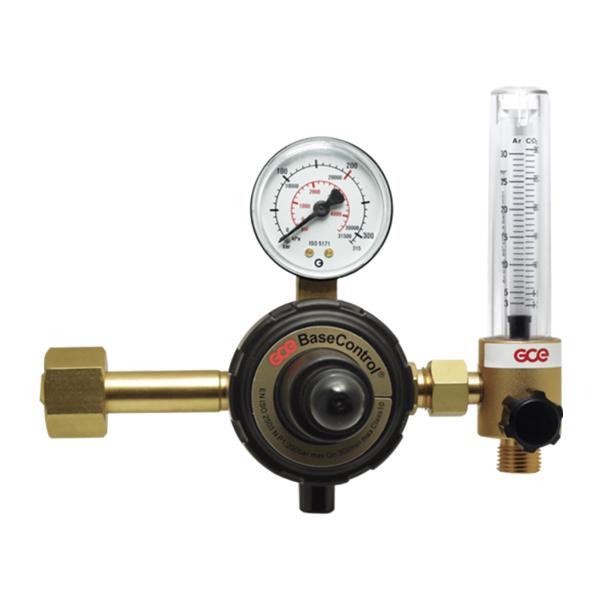

Basecontrol GCE reducer with CO2 flow meter cod. 0870359

New reducers for professional use

• Engineered to reduce weight and bulk
• Designed for cylinder pressure up to 230bar
• Equipped with an ON / OFF valve at the outlet
• In accordance with ENISO 2503
• High performance

Technical data

Gas: CO2

Reducer body: made of forged brass

Reducer bell: made with aluminum and zinc alloy molding

Nut, nozzle and hose connector: made of brass

Diaphragm: EPDM

Seals material: PA

Inlet / outlet connection: specific according to the type of gas

Maximum inlet pressure: 200 bar

Outlet pressure / flow rate range: 0-24 l / min

Operating temperature: -20 ° C to + 60 ° C

Reducer weight: 1.18 kg

ISO 2503 class: 20
